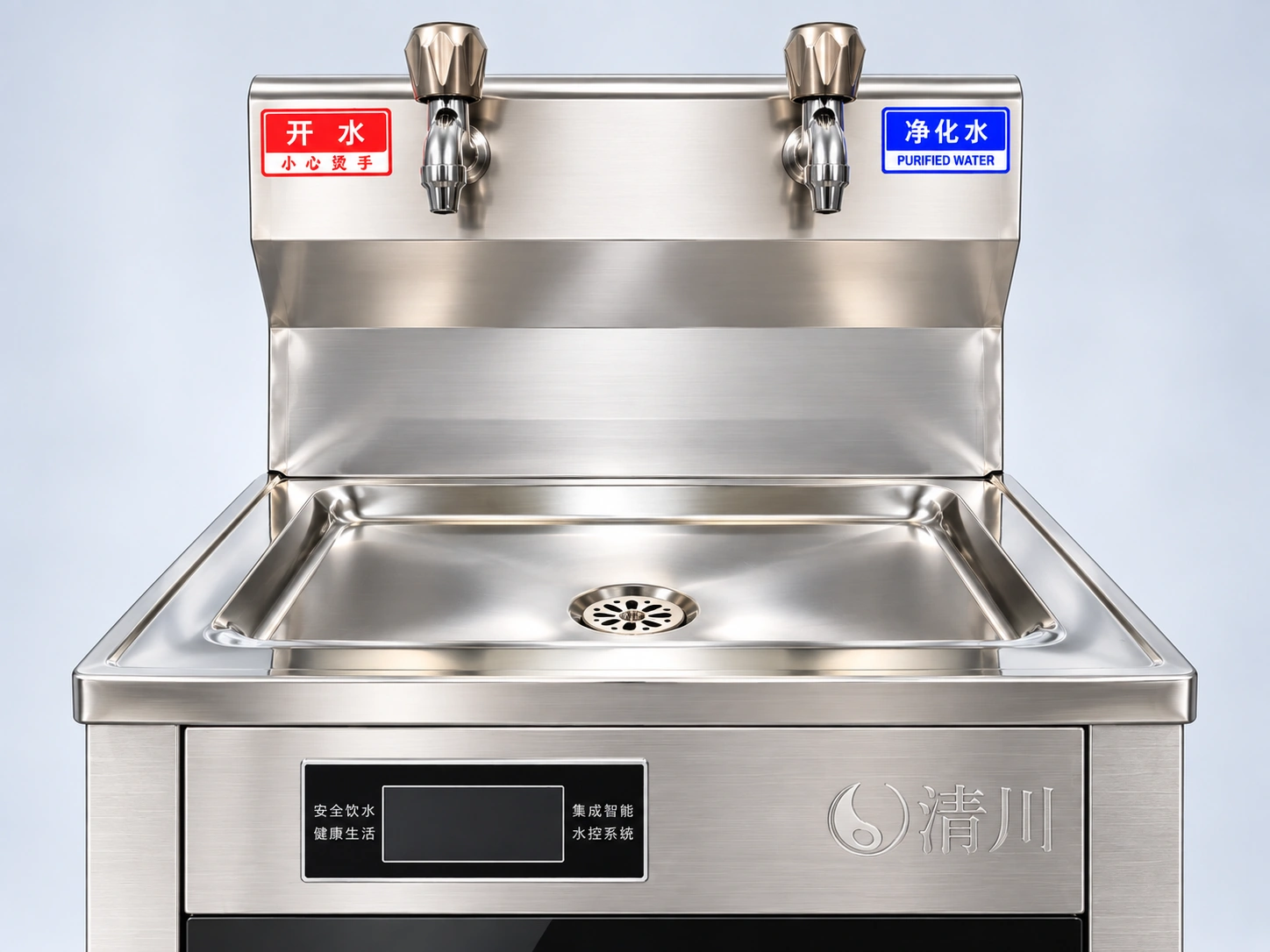

Outlet and control area
A closer view of the upper controls and outlets.
PRODUCT MODEL / T2E
T2E Commercial Water Dispenser
A commercial warm-water dispenser with ambient or warm output and four filtration configurations.
Product positioning
Choose a clear configuration around the way water is used.
T2E organizes output mode and filtration configuration as selectable sales configurations under one product body.
01
Ambient or warm output mode
02
BASIC, PC2, UF and RO filtration configurations
03
Product Master-driven parameter and service relationships
Product view

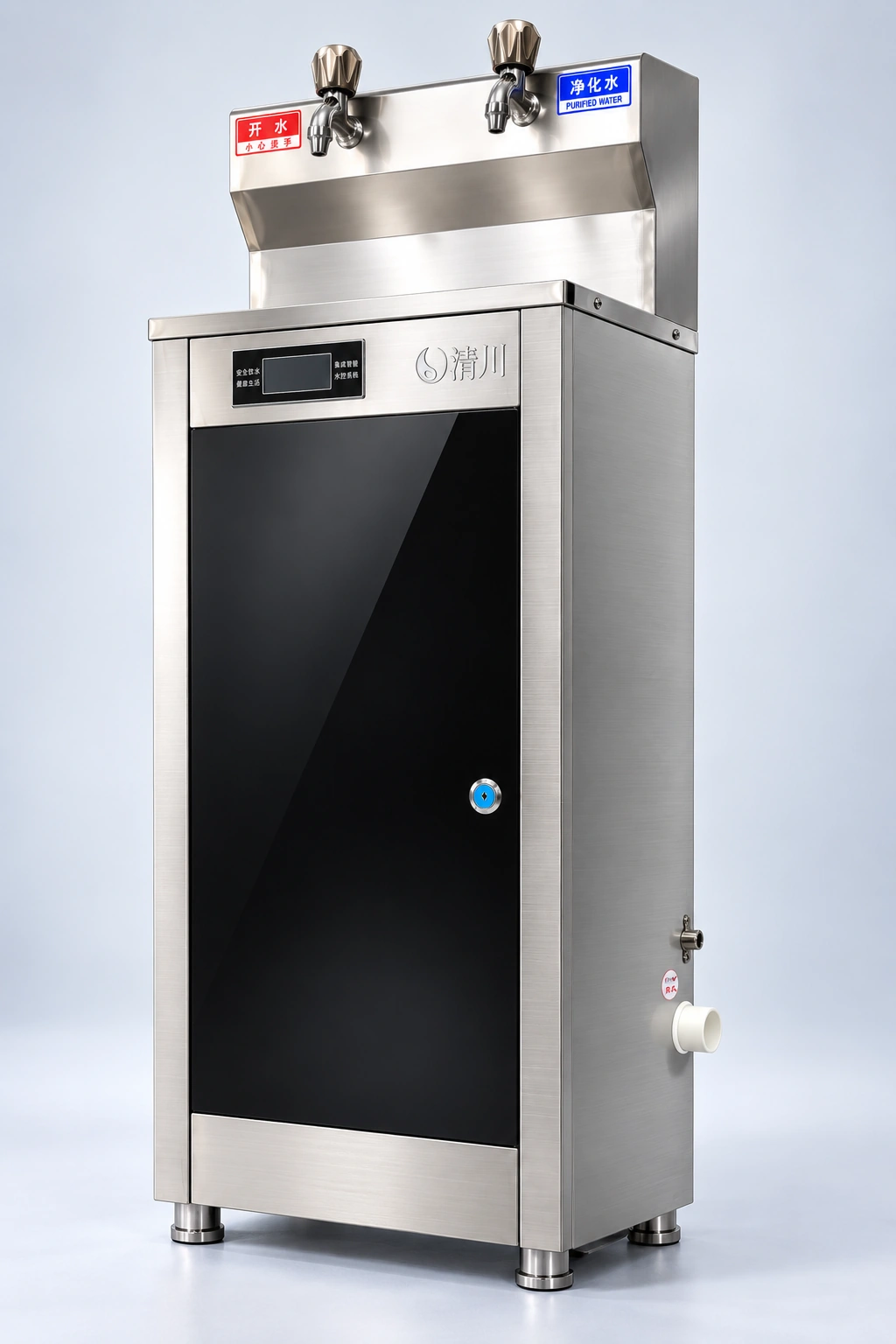

Exterior and body details
Choose a configuration
Choose the output mode, then the filtration system.
The selected configuration, filtration stages and technical specifications are driven by the Product Master SKU relationships.
Current configuration
Q-2ET2EFS
Basic filtration1 Hot + 1 Ambient
Key specifications
- Heating power
- 2000W
- Hot tank capacity
- 13L
- Hot water output
- 20L/h
- Ambient water output
- 120L/h
- Approx. users
- 65
- Filter elements
- 2
Full technical specifications
- Output mode
- 1 Hot + 1 Ambient
- Dimensions
- 430 × 320 × 1280 mm
- Default power
- 220V / 50Hz
- Rated power
- 2000W
- Heating power
- 2000W
- Hot tank volume
- 18L
- Hot tank capacity
- 13L
- Hot tank material
- 316 stainless steel
- Hot water output
- 20L/h
- Ambient purified water
- 120L/h
- Approx. users
- Approx. 65 users
- Filtration system
- Basic filtration
- Filter elements
- 2
- Front panel
- Black titanium stainless steel
- Body
- 201 stainless steel
- Water-contact parts
- 304 stainless steel
- Sink
- 304 stainless steel
- Water inlet
- 4分
- Drain connection
- 1寸
- Working water pressure
- 0.1–0.4MPa
- UV sterilization
- No
Filtration system
Basic filtration · 2 stages
2 elements
Service & support
Clear support from installation through long-term use.
Installation
Yes
Warranty
12 months
Onsite warranty
Yes
Parts during warranty
Yes
Consumables excluded
Yes
Parts after warranty
Yes
Onsite service after warranty
Paid
Hot tank warranty
3 years
Installation policy
Free nationwide on-site installation in mainland China (excluding filters and accessories).
Water and electrical modification
Additional charges apply for site modifications such as extending pipework, drilling, or hot-melt pipe alterations.
Installation and delivery
Confirm site conditions before planning delivery.
These are the confirmed standard connection and power specifications. Other voltage, frequency and plug requirements can be customized for a project.
Standard water inlet
4分
Standard drain connection
1寸
Working water pressure
0.1–0.4MPa
Standard power
220V / 50Hz
Other voltage, frequency and plug specifications can be customized.
Adjustable feet can add approximately 35 mm; the standard product height remains 1280 mm.
Discuss installation and project conditionsT2E MODEL
Product Details
From the dispensing controls and taps to the water tray, T2E is designed for practical daily use in commercial environments.
These images are product presentation visuals. Configuration and technical specifications are defined by the selected SKU and approved Product Data.

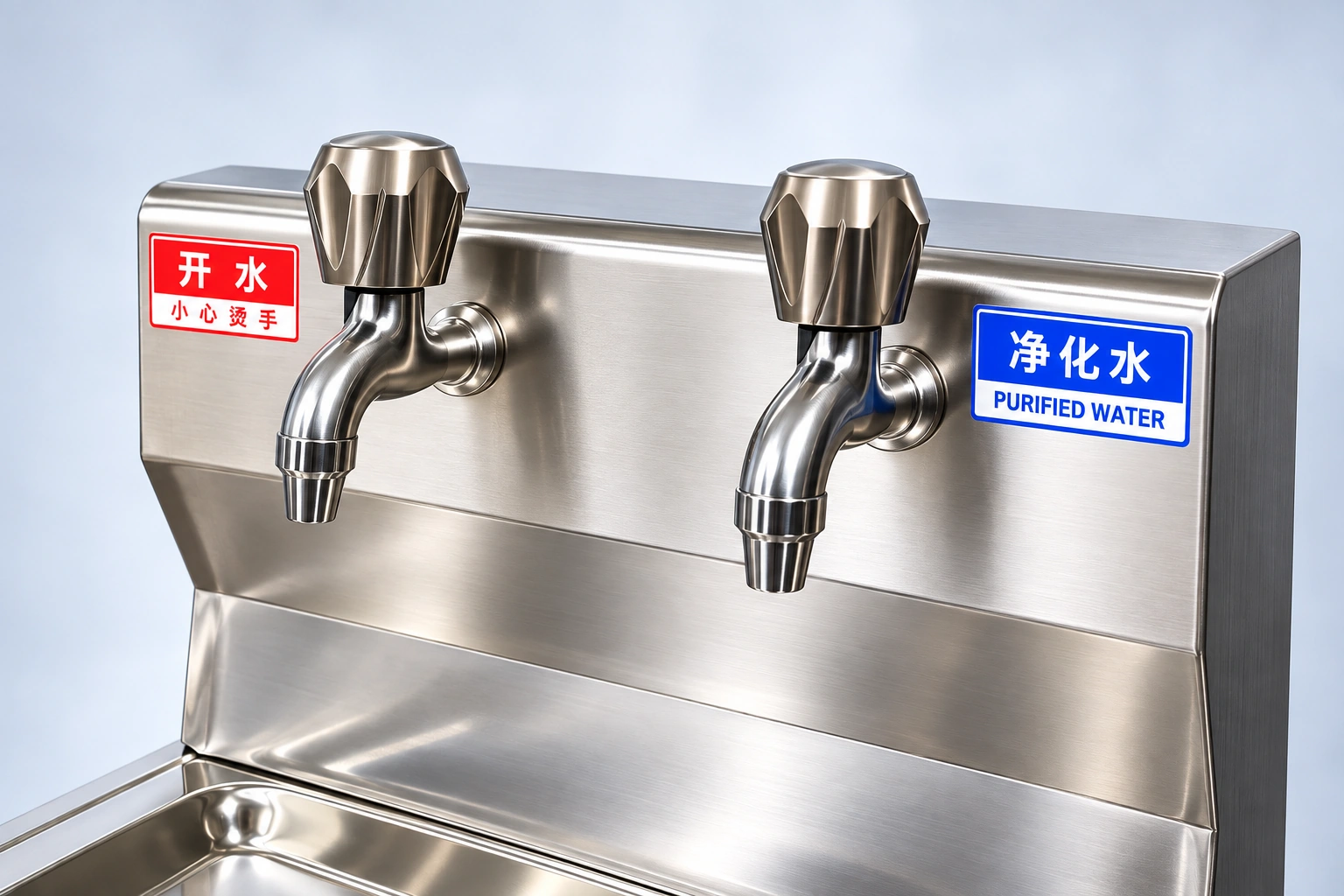

Tap detail
A closer view of the taps and surrounding area.

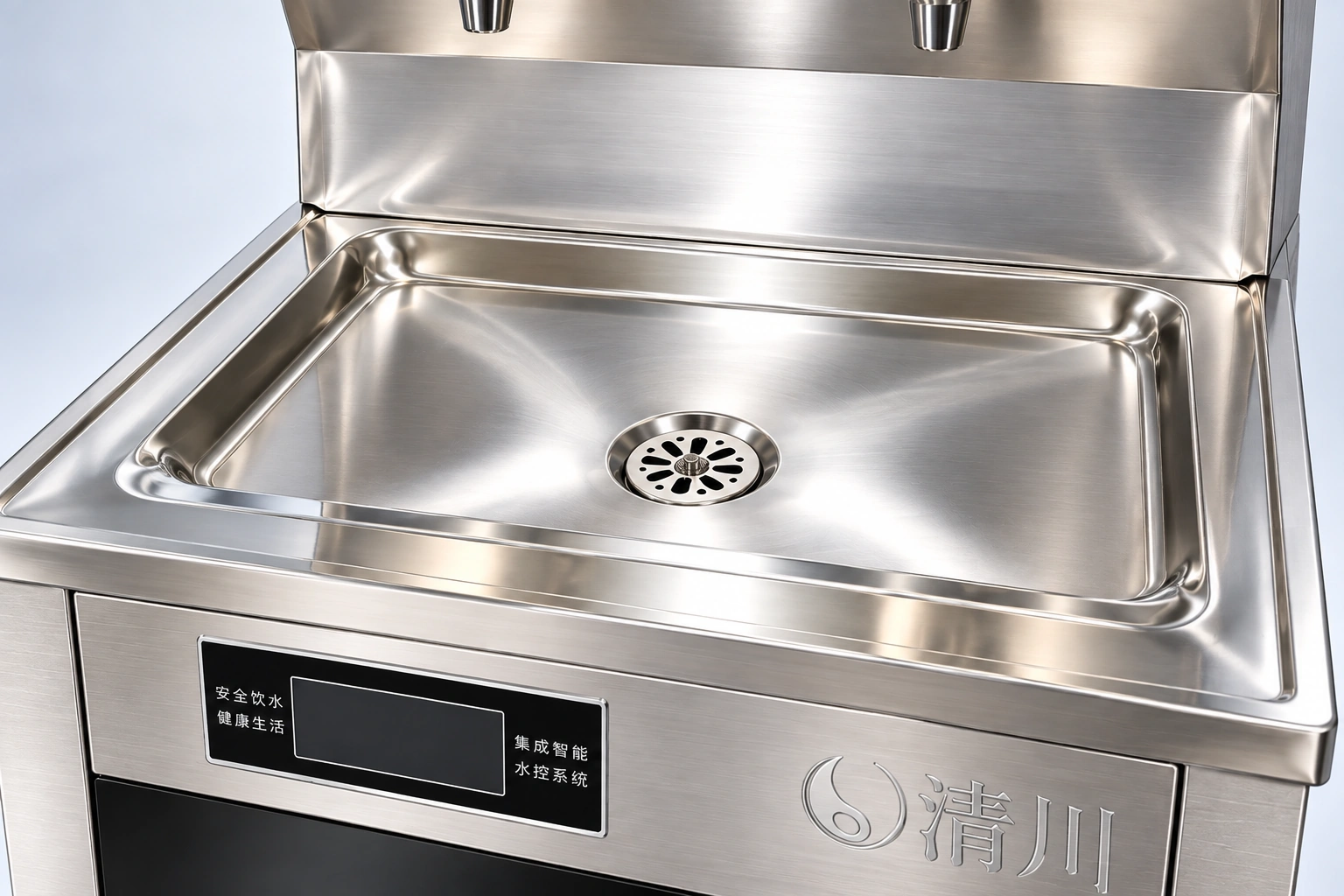

Water tray detail
A closer view of the water tray and basin.
